Switch Series

 　

　

產品資訊  Products

　

Tact Switch

Multi-Func.Switch

Push Switch

Rocker Switch

Dip Switch

Detector Switch

Door Switch

Light Push Switch

Micro Switch
Keyboard Switch

Slide Switch/Jack

Microphone

Buzzer

　

開關編號,尺寸,包裝簡易對照表(點圖快速進入詳細規格尺寸)
　
Series Type Features

Dimensions(mm)

Earth RoHS Package
W L H

terminal

Lead-Free
 Tact Switch
 TSIA Surface

Mount

 Thinness 4.7 4.7 0.55 - 7000pcs/Reel
 TSIB Thinness 4.7 4.7 0.55 - 7000pcs/Reel
 TSIC Thinness 3.7 3.7 0.35 - 10000pcs/Reel
 TSID Thinness 4.5 4.5 0.40 - 7000pcs/Reel
 TSKA Dust-proof 5.2 5.2 0.8 - 4000pcs/Reel
 TSKB Dust-proof 5.2 5.2 1.5 - 4000pcs/Reel
 TSKC Dust-proof 5.2 5.2 1.7 - 4000pcs/Reel
 TSKD Dust-proof 4.8 4.8 0.8 - 4000pcs/Reel
 TSKA-P Dust-proof 5.2 5.2 0.8 4000pcs/Reel
 TSKB-P Dust-proof 5.5 5.2 1.5 4000pcs/Reel

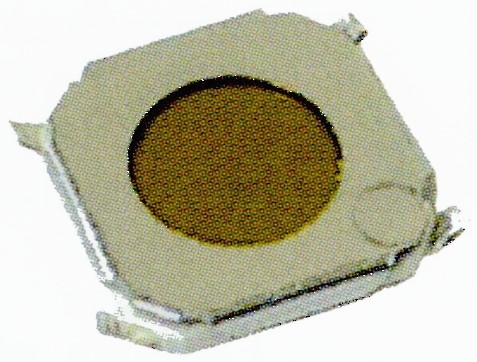

 TSKA-J Dust-proof 5.0 5.0 0.8 - 4000pcs/Reel

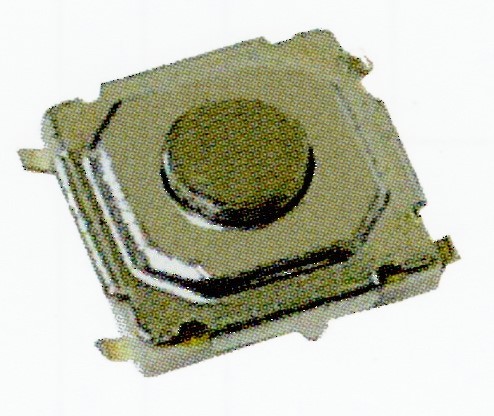

 TSKB-J Dust-proof 5.0 5.0 1.5 - 4000pcs/Reel

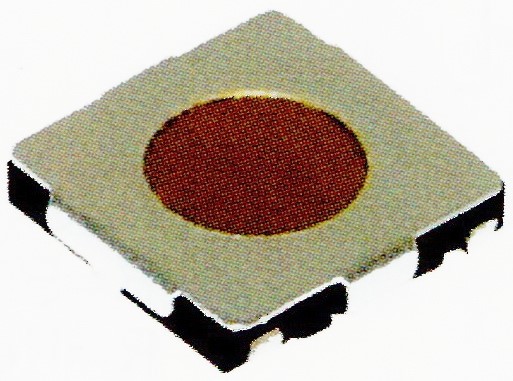

 TSKA-JP Dust-proof 5.0 5.0 0.8 4000pcs/Reel

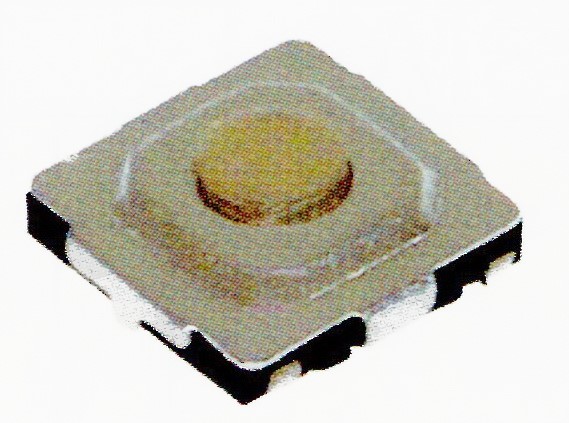

 TSKB-JP Dust-proof 5.0 5.0 1.5 4000pcs/Reel
 SKSA Surface

Mount

 Miniature 2.9 2.4 0.4 - 2000pcs/Reel
 TSSKA Miniature 3.35 3.35 0.85 4000pcs/Reel
 TSSKB Miniature 3.35 3.35 1.5/2.0 4000pcs/Reel
 TSCA Miniature 3.5 3.0 1.8 - 3000pcs/Reel
 TSJ Miniature 3.9 2.9 2.0 - 3000pcs/Reel
 TSU Surface

Mount

 Dust-proof 6.0 3.7 2.5 - 3000pcs/Reel
 TSU-P Dust-proof 6.0 3.7 2.5 3000pcs/Reel
 TSYY Normal

closed

 6.0 3.8 2.5 - 3000pcs/Reel
 TSYS Normal

closed

 6.2 5.0 1.6 - 3000pcs/Reel
 TSH-J 　 6.0 3.5 4.3/5.0 - 2000pcs/Reel
 TSH-G 　 6.0 3.5 4.3/5.0 - 2000pcs/Reel
 TSH-P

Through

Hole

 　 6.0 3.5 4.3/5.0 - 2000pcs/Reel
 TSH-S 　 6.0 3.5 4.3/5.0 - 1500pcs/Reel
 TSH-L 　 6.0 3.5 4.3/5.0 - 1500pcs/Reel
 TSCS Surface

Mount

 Miniature 3.5 3.0 1.4 - 3000pcs/Reel

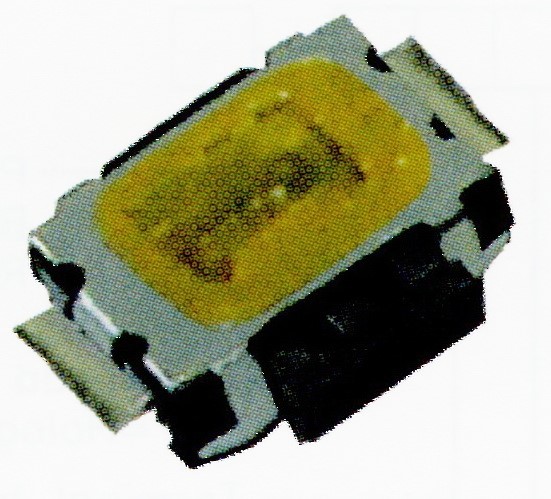

 TSCM Miniature 3.9 2.9 1.5 - 3000pcs/Reel
 TSCF Miniature 4.7 3.5 1.6 - 3000pcs/Reel

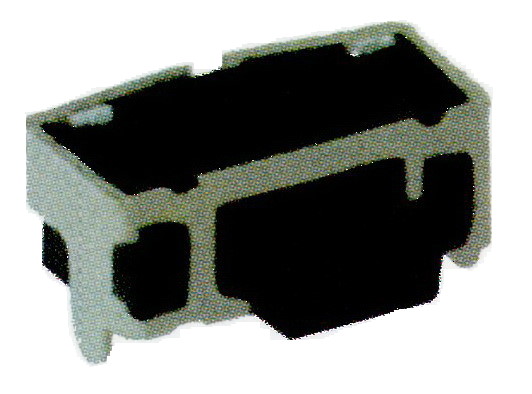

 TS09 Miniature 4.5 3.5 1.7 3000pcs/Reel
 TS4V Miniature 4.5 3.4 3.35 2000pcs/Reel
 TSSH-VS Miniature 4.6 3.5 2.3 4000pcs/Reel
 TSSH-V Miniature 4.6 3.5 2.3 4000pcs/Reel
 TS02 　 6.0 7.4 6.0 4000pcs/Reel
 TSV-S 　 6.0 3.15~15.85 6.0 500pcs/Reel

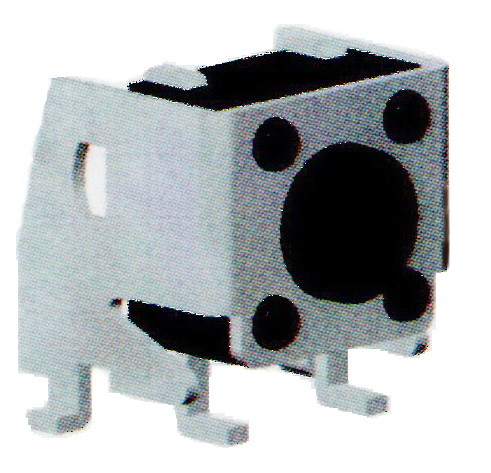

 TSV-SP 　 6.0 3.15~ 5.85 6.0 500pcs/Reel
 TSH-VS 　 7.0 3.5 2.5 2000pcs/Reel
 TSH-V

Through

Hole

 　 6.0 4.3/5.0 3.5 2000pcs/Reel
 TSV 　 6.0 3.15~ 5.85 6.0 1000pcs/Reel

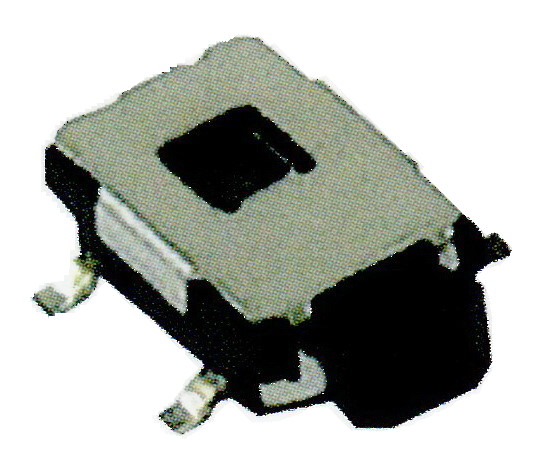

 TSE-SG 　 7.7 4.0 1.9 - 2000pcs/Reel
 TSQE 　 12.0 6.45 12.0 - 500pcs/Reel
 TSQF 　 12.0 11.2 12.0 - 500pcs/Reel
 TSX-G Surface

Mount

 　 4.5 4.5 3.8/7.0 - 2000pcs/Reel(H3.8)

750pcs/Reel  (H7.0)

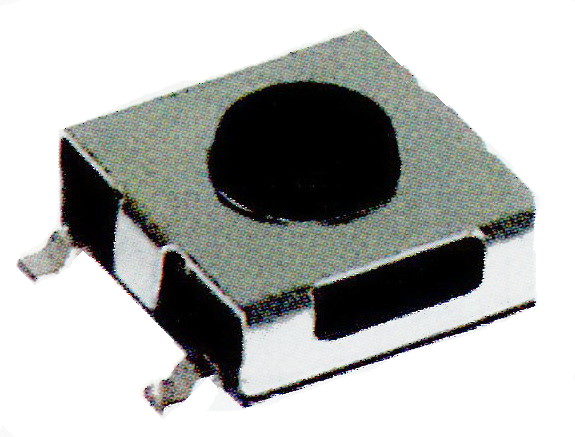

 TSSZS 　 4.6 4.6 1.5 - 3000pcs/Reel
 TSS 　 6.0 6.0 4.3~9.5 - 1000pcs/R(H4.3/5.0)

750pcs/R  (H7.0/7.3)

500pcs/R  (H8.5/9.5)
 TSL-S Dust-proof 6.2 6.2 2.0~3.5 - 2000pcs/R(H2.0~3.1)

1500pcs/Reel   (H7.0)
 TSL-P Dust-proof 6.2 6.2 2.0~3.5 2000pcs/R(H2.0~3.1)

1500pcs/Reel   (H7.0)
 TSZ Dust-proof 6.2 6.2 2.5~3.5 2000pcs/Reel
 TSO-G Dust-proof 6.2 6.2 2.5~5.2 - 1500pcs/R(H2.5/3.5)

1000pcs/Reel (H5.2)
 TSO-J Dust-proof 6.2 6.2 2.5~5.2 - 1500pcs/R(H2.5/3.5)

1000pcs/Reel (H5.2)

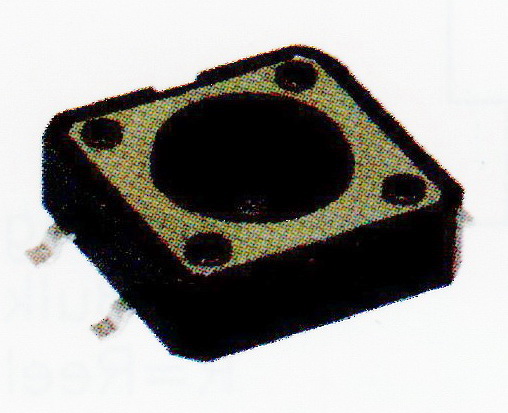

 TSQ-G 　 　 12.0 12.0 4.3~5.0 - 900pcs/Reel
 TSX

Through

Hole

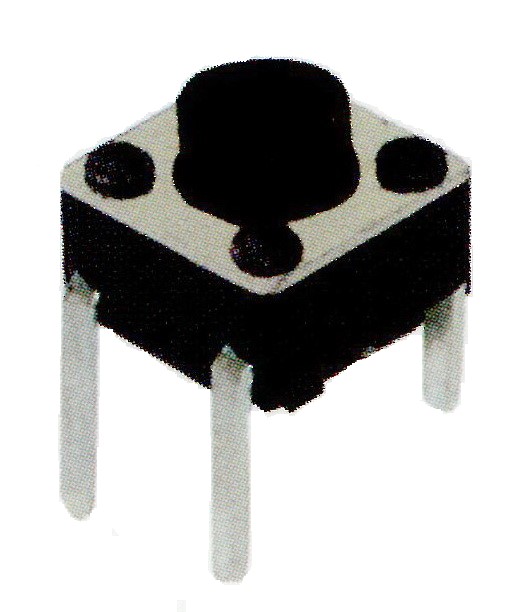

 　 4.5 4.5 3.8/7.0 - 2000pcs/Bulk
 TSX-S 　 4.5 4.5 3 - 2000pcs/Bulk

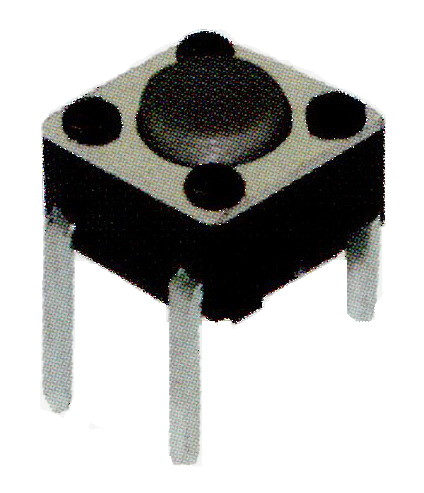

 TSA 　 6.0 6.0 4.3~19.0 - 2000pcs/Bulk
 TSA-S 　 6.0 6.0 4.3~5.0 - 2000pcs/Bulk
 TSP 　 6.0 6.0 4.3~17.0 2000pcs/Bulk

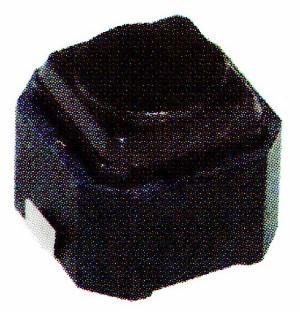

 TS6C Long-travel 6.0 6.0 5.0 - 1000pcs/Reel

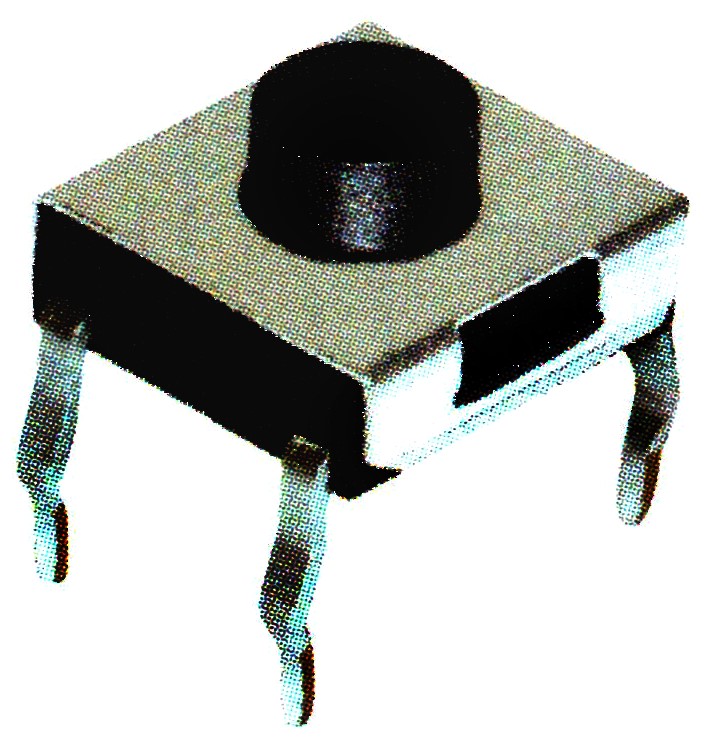

 TSL-DH Long-travel 6.0 6.0 2.5~3.5 - 2000pcs/Reel
 TSN6 　 7.2 7.2 2.7 - 60pcs/Tube
 TSQA 　 12.0 12.0 4.3 - 500pcs/Bulk
 TSQB 　 12.0 12.0 7.5 - 500pcs/Bulk
 TSQC 　 12.0 12.0 12.0 - 500pcs/Bulk
 TSQG 　 12.0 12.0 7.3 - 500pcs/Bulk

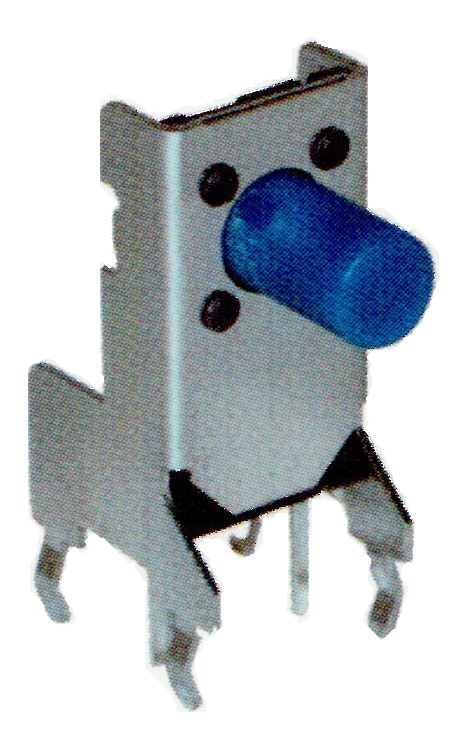

 TSD1D 　 6.0 8.4 6.0 500pcs/Bulk
 TSD Tow-key 6.0 3.85~ 5.85 6.0 250pcs/Bulk
 TSL-SW Surface

Mount

 Washable 6.2 6.2 3.1 - 2000pcs/R(H2.0~3.1)

1500pcs/Reel   (H3.5)
 TSL-PE Washable 6.2 6.2 3.1 2000pcs/R(H2.0~3.1)

1500pcs/Reel   (H3.5)

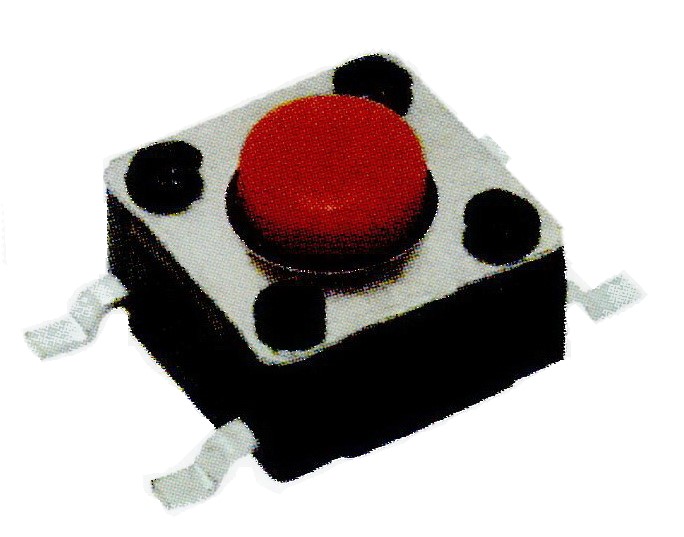

 TSWEA Washable 6.2 6.2 4.3 - 1000pcs/Reel
 TSW6-S Washable 7.2 7.2 4.7~10 - 1200pcs/R  (H4.7)

1000pcs/R  (H5.2)

800pcs/R   (H6.4)

500pcs/R (H10.0)

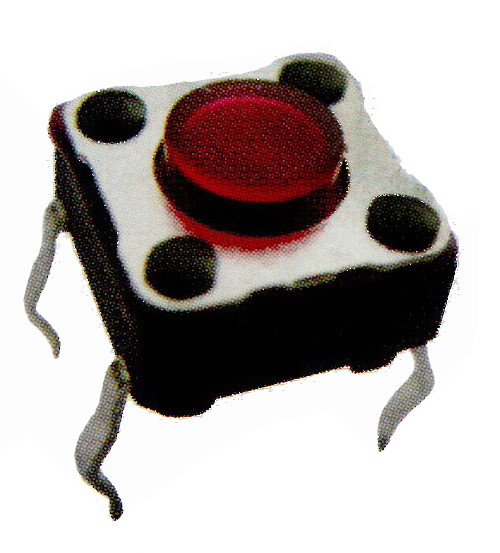

 TSDBY 　 Washable 6.5 6.5 4.3~5.0 - 1000pcs/Bulk

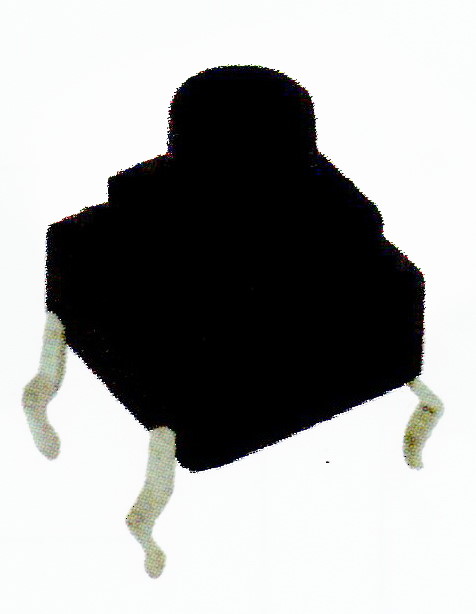

 TSWFA 　 Washable 6.5 6.5 4.3 - 2000pcs/Bulk

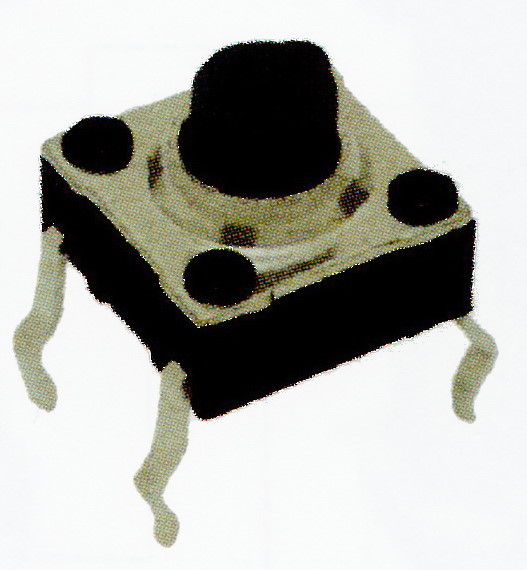

 TSWAB 　 Washable 6.5 6.5 5.0 - 2000pcs/Bulk
 TSW6-V

Through

Hole

 Washable 7.2 1.8~ 7.0 7.2 50pcs/Tube
 TSW6-G Washable 7.2 7.2 4.7~10 60pcs/Tube
 TSW6-O Washable 7.2 7.2 4.7~10 - 60pcs/Tube
 TSWB Washable 10. 10.0 23.3~23.8 - 75pcs/Tray
 TSWBK Washable 10.0 10.0 33.6 - 48pcs/Tray
 TSWBK- Washable 10.0 10.0 33.6 48pcs/Tray
        9001
 TSVR-T 　 　 6.0 4.8 6.0 700pcs/Box
 TST 　 　 6.0 6.0 4.3~9.5 - 1000pcs/Box
 TSWC 　 Washable Φ9 　 13~23.2 - 1000pcs/Box

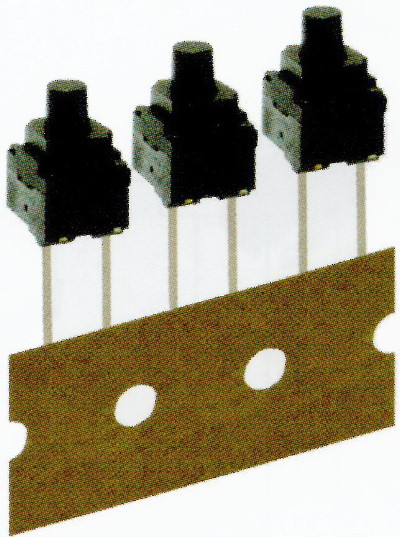

 TSWD 　 Washable 8.0 8.0 13 - 1000pcs/Box
　
Series Type Features

Dimensions(mm)

Earth RoHS Package
W L H

terminal

Lead-Free
 Muliti-Func.Switch
 LS3A 　

Lever

&

Push

 12.0 11.8 2.5 1000pcs/Reel
 LS3B 11.7 11.8 2.5 1000pcs/Reel
 LS3C 9.5 8.8 2.2 1500pcs/Reel
 LS3D 9.5 8.2 2.2 1500pcs/Reel

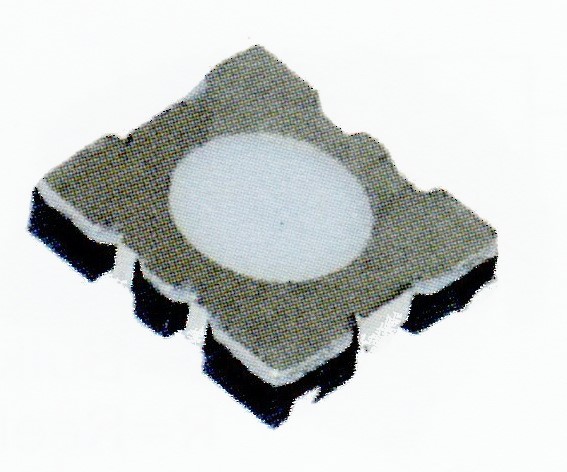

 TSD4

Double

action

 4.1 3.9 0.6 1000pcs/Reel

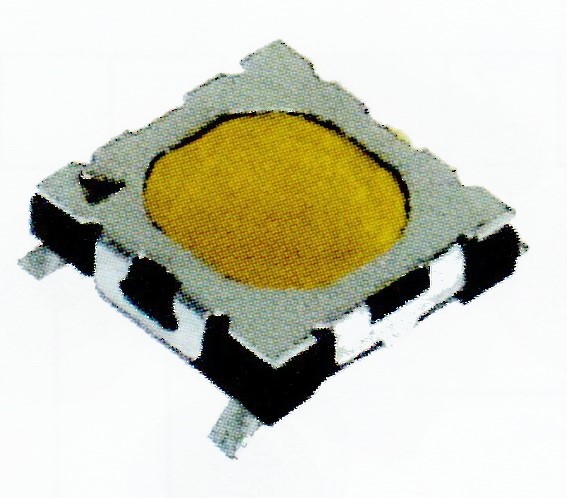

 TSD5 5.0 5.0 0.8 5000pcs/Reel
　
Series Type Features

Dimensions(mm)

Earth RoHS Package
W L H

terminal

Lead-Free
 Detector Switch
 DSSA-001

Through

Hole

 　 8.5 5.2 3.0 - 500pcs/Bulk
 DSSA-002 Left side 8.5 5.2 3.0 500pcs/Bulk
 DSSA-003 Right side 8.5 5.2 3.0 500pcs/Bulk

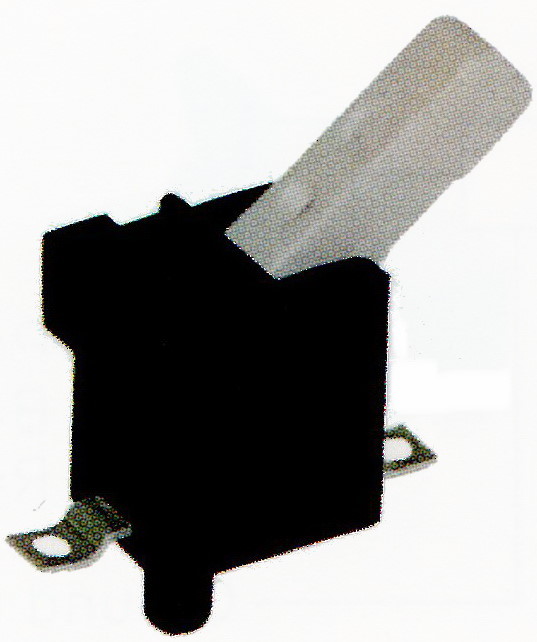

 DT09B Surface

Mount

 　 4.4 2.7 6.85 - 1000pcs/Bulk

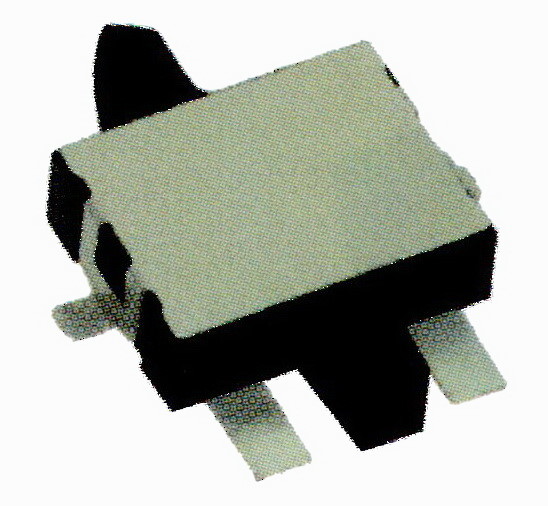

 DT02L Left side 5.7 4.4 1.75 2000pcs/Bulk

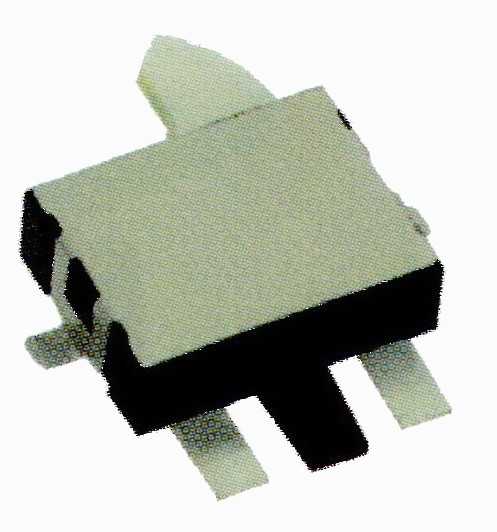

 DT02R Right side 5.7 4.4 1.75 2000pcs/Bulk
 DT03 　 4.7 3.5 5.3 - 4000pcs/Reel
 DT06 　 10.0 3.8 4.3 - 500pcs/Bulk

Series Type Features

Dimensions(mm)

Earth RoHS Package
W L H

terminal

Lead-Free
 Push Switch
 HSP2248

Through

Hole

 Self-lock 7.0 7.0 9.5 - 100pcs/Tray
 HSP2261 Self-lock 7.0 7.0 9.5/12.5 - 500pcs/Bulk
 HSP2262 Self-lock 8.5 8.5 14.0 - 500pcs/Bulk
 HSP2263 Self-lock 8.0 8.0 13.5 - 500pcs/Bulk
 HSP2266 Self-lock 5.8 5.8 7.2/10 - 500pcs/Bulk

Series Type Features

Dimensions(mm)

Earth RoHS Package
W L H

terminal

Lead-Free
 Light Push Switch
 DPS12

Through

Hole

 Lock/Uniock 17.6 12.5 14.0 - 100pcs/Tray
 DPS17 Lock/Uniock 17.6 17.3 14.0 - 100pcs/Tray

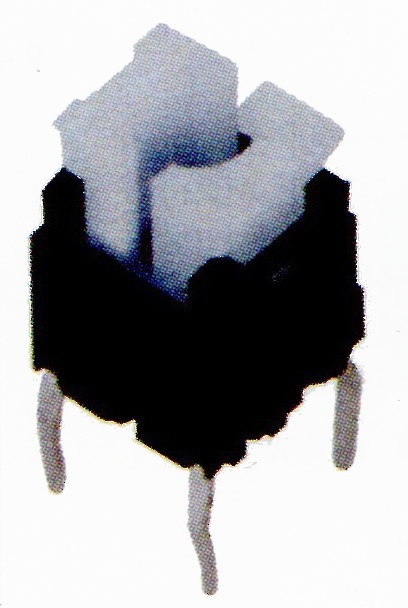

 LP6 LED Light 6.0 6.0 7.2 - 1000pcs/Tray

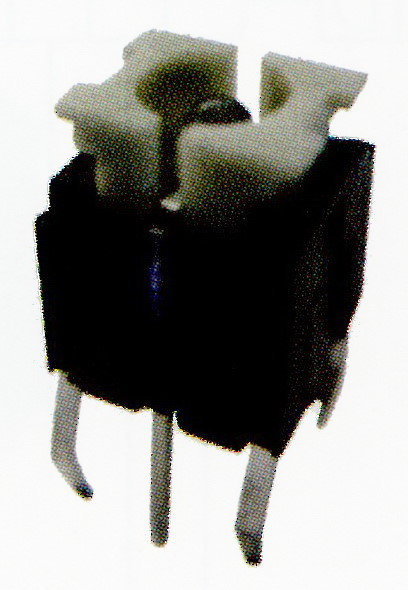

 LPE LED Light 6.0 6.0 9.0 - 1000pcs/Bulk

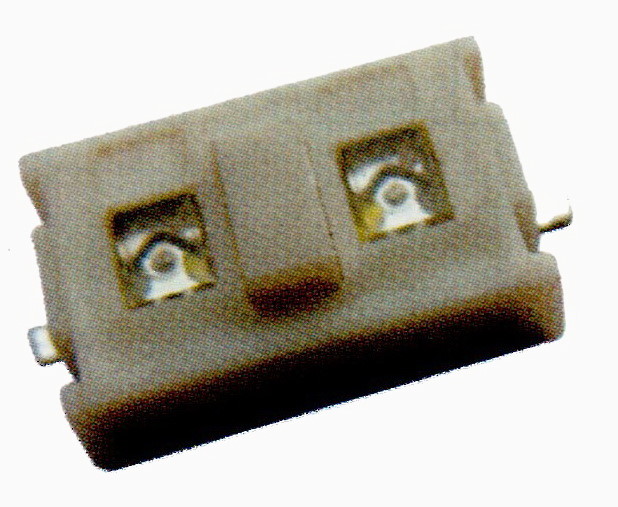

 LPD 　 LED Light 6.8 4.1 2.5 - 3000pcs/Reel
　
Series Type

Dimensions(mm)

Earth RoHS Package
W L H

terminal

Lead-Free
 Dip Switch
 RA Right Angle Type - - - - -
 RPL/RP Piano Type - - - - -
 RS/RSR Slide Type - - - - -
 HRM Half Pitch Type - - - - -
 RM/RMR Surface Mounting

Type

 - - - - -
 RI/RIR Machine Insertable Type - - - - -



 　
