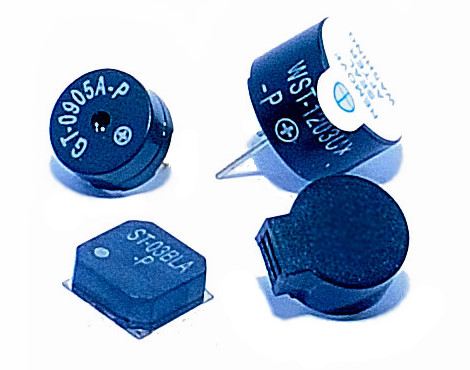

Buzzer Series


產品資訊  Products

Microphone

Buzzer



Buzzer

Pizeo





電磁式 - 外部驅動式

 External Drive Circuit Type

Model No.
Rated Voltage
(V)
Operating Voltage
(V)
Current Consumption
(mA)
Coil resistance

(ohm)

SPL
(dB)
Resonant Frequency
(Hz)
Operating Temperature

(℃)

Dimensions

(mm)

 PAC-ST-03BL-P 3.6 2-4V Max.70mA 16 ± 2.5

Min.

85

2300 Hz -40 ~ +85 8.5 x 8.5 x 3.0
 PAC-ST-03BLA-P 3.6 2-4V Max.100mA 16 ± 2.5 Min.

85

2500 Hz -40 ~ +85 8.5 x 8.5 x 3.0
 PAC-ST-03BH-P 3.6 2-4V Max.70mA 16± 2.5 Min.

85

2730 Hz -40 ~ +85 8.5 x 8.5 x 3.0
 PAC-ST-03BT-P 3.6 2-4V Max.100mA 16 ± 2.5 Min.

85

3200 Hz -40 ~ +85 8.5 x 8.5 x 3.0
 PAC-ST-04 BL-P 3.6 2-4V Max.70mA 16±2.5 Min.

85

2300Hz -40~+85 8.4 x 8.5 x 4.0
 PAC-ST-04BLA-P 3.6 2-4V Max.100mA 16±2.5 Min.

85

2500Hz -40~+85 8.4 x 8.5 x 4.0
 PAC-ST-04 BH-P 3.6 2-4V Max.70mA 16±2.5 Min.

85

2730Hz -40~+85 8.4 x 8.5 x 4.0
 PAC-ST-04 BT-P 3.6 2-4V Max.100mA 16±2.5 Min.

85

3200Hz -40~+85 8.4 x 8.5 x 4.0
 PAC-GT-0901A-P 1.5 1-2V Max.80mA 6.0±15% Min.

85

2730Hz -20~+60 Ø9 x H4.5

腳距:4mm

 PAC-GT-0903A-P 3 2-4V Max.80mA 15±15% Min.

85

2730Hz -20~+60 Ø9 x H4.5

腳距:4mm

 PAC-GT-0905A-P 5 4-6V Max.80mA 30±15% Min.

85

2730Hz -20~+60 Ø9 x H4.5

腳距:4mm

 PAC-GT-0915RP2-P 1.5 1-2V Max.80mA 6.0±1 Min.

85

2730Hz -20~+60 Ø9 x H4

腳距:4mm

 PAC-GT-0930RP2-P 3 2-4V Max.80mA 15±2 Min.

87

2730Hz -20~+60 Ø9 x H4

腳距:4mm

 PAC-GT-0950RP2-P 5 4-6V Max.80mA 30±4.5 Min.

85

2730Hz -20~+60 Ø9 x H4

腳距:4mm

 PAC-GT-11P-P 1.5 1-2V Max.35mA 16±4.5 Min.

85

2048Hz -20~+60 Ø12 x H8.5

腳距:6.5mm

 PAC-GT-111P-P 1.5 1-4V Max.10mA 50±7.5 Min.

80

2048Hz -20~+60 Ø12 x H8.5

 腳距:6.5mm

 PAC-GT-11PS-P 1.5 1-2V Max.35mA 16±4.5 Min.

75

2048Hz -20~+60 Ø12 x H5.4

 腳距:6.5mm

 PAC-GT-111PS-P 1.5 1-2V Max.10mA 50±7.5 Min.

80

2048Hz -20~+60 Ø12 x H5.4

腳距:6.5mm

 PAC-WT-1201-P 1.5 1-2V Max.35mA 16±4.5 Min.

85

2400Hz

±200

-20~+60 Ø12 x H9.8

腳距:6.5mm

 PAC-WT-1205-P 5 4-6V Max.40mA 47±5 Min.

87

2400Hz

±200

-20~+60 Ø12 x H9.8

腳距:6.5mm

 PAC-WT-1212-P 12 9-15V Max.40mA 140±5 Min.

87

2400Hz

±200

-20~+80 Ø12 x H9.8

腳距:6.5mm

 PAC-WST-1307-P 5 3-7V Max.40mA 45±5 Min.

85

2400Hz

±200

-20~+70 12.8 x 12.8

x 7.1

 PAC-WST-1310-P 5 4-8V Max.40mA 47±5 Min.

87

2400Hz

±200

-20~+70 12.8 x 12.8

x 10.5

 PAC-WT-1601-P 1.5 1-2V Max.12mA 27±3 Min.

80

2400Hz

±200

-20~+60 Ø16 x H14

腳距:7.6mm

 PAC-WT-1606-P 6 4-8V Max.40mA 50±5 Min.

85

2048Hz

±200

-20~+60 Ø16 x H14

腳距:7.6mm

 PAC-WT-1612-P 12 9-15V Max.40mA 115±12 Min.

85

2048Hz

±200

-20~+60 Ø16 x H14

腳距:7.6mm

 PAC-WT-2505-P 6 3-7V Max.80mA 27±4 Min.

85

730Hz -30~+85 Ø25 x H12.5

腳距:10.2mm

 PAC-WT-2506-P 6 3-7V Max.60mA 36±5 Min.

85

1000Hz -30~+85 Ø25 x H12.5

腳距:10.2mm

 PAC-WT-2512-P 12 8-16V Max.60mA 115±15% Min.

92

1000Hz -30~+85 Ø25 x H12.5

腳距:10.2mm





電磁式 - 自激式

 Drive Circuit Built-In Type

Model No.
Rated Voltage
(V)
Operating Voltage
(V)
Current Consumption
(mA)
Coil resistance

(ohm)

SPL
(dB)
Resonant Frequency
(Hz)
Operating Temperature

(℃)

Dimensions

(mm)

 PAC-WST-0903S-P 3 2-4V Max.35mA - Min.

80

2700Hz

±400

-30~+70 Ø9.6 x H5

腳距:5mm

 PAC-WST-0905S-P 5 4-6V Max.35mA - Min.

83

2730Hz

±200

-20~+60 Ø9.6 x H5

腳距:5mm

 PAC-WST-1310S-1-P 1.5 1.5-3V Max.75mA - Min.

83

2400Hz

±200

-20~+70 12.8 x H12.8

 x 10

 PAC-WST-1310S-2-P 5 3-7V Max.30mA - Min.

85

2400Hz

±200

-20~+70 12.8 x H12.8

x 10

 PAC-WST-1310S-3-P 12 8-15V Max.30mA - Min.

85

2400Hz

±200

-20~+70 12.8 x H12.8

 x 10

 PAC-WST-1201UX-P 1.5 1.4-2V Max.25mA - Min.

75

2300Hz

±200

-20~+70 Ø12 x 7.5

 腳距:7.6mm

 PAC-WST-1203UX-P 3 2-5V Max.30mA - Min.

83

2300Hz

±200

-20~+70 Ø12 x H7.5

腳距:7.6mm

 PAC-WST-1206UX-P 5 3-7V Max.30mA - Min.

85

2300Hz

±200

-20~+70 Ø12 x H7.5

腳距:7.6mm

 PAC-WST-1212UX-P 12 9-15V Max.30mA - Min.

85

2300Hz

±200

-20~+70 Ø12 x H7.5

腳距:7.6mm

 PAC-WST-1201BX-P 1.5 1.4-2V Max.25mA - Min.

75

3100Hz

±200

-20~+70 Ø12 x H7.5

腳距:7.6mm

 PAC-WST-1203BX-P 3 2-5V Max.30mA - Min.

83

3200Hz

±200

-20~+70 Ø12 x H7.5

腳距:7.6mm

 PAC-WST-1206BX-P 5 3-7V Max.30mA - Min.

85

3200Hz

±200

-20~+70 Ø12 x H7.5

 腳距:7.6mm

 PAC-WST-1212BX-P 12 9-15V Max.30mA - Min.

85

3200Hz

±200

-20~+70 Ø12 x H7.5

腳距:7.6mm

 PAC-WST-1205S-P 5 4-6V Max.40mA - Min.

85

2300Hz

±200

-25~+70 Ø12 x H9.5

腳距:7.6mm

 PAC-WST-1212S-P 12 8-16V Max.40mA - Min.

85

2300Hz

±200

-25~+70 Ø12 x H9.5

腳距:7.6mm

 PAC-WST-1606S-P 6 4-8V Max.40mA - Min.

85

2300Hz

±200

-20~+60 Ø16 x H14

腳距:7.6mm

 PAC-WST-1612S-P 12 9-15V Max.40mA - Min.

85

2300Hz

±200

-20~+60 Ø16 x H14

腳距:7.6mm
