12MM SNAP-IN INSULATED SHAFT TYPE
SHAFT STYLES
MODEL L 15 17 20 25 30 41
R1241

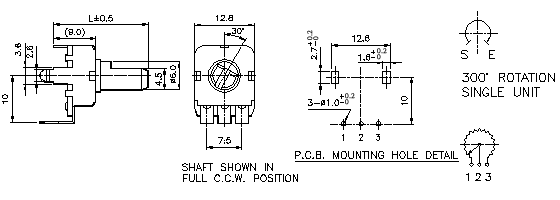

R1271B
R1271A
a 4.85 7 7 8 12 12
b 5   10 12 12
c     7 10 12 12


MODEL L 10 12 15 20 25 36
R1231

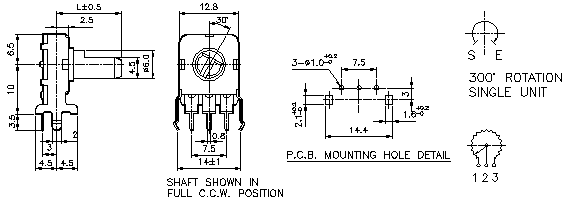

R1272B
a 4.85 7 7 8 12 12
b 5   10 12 12
c     7 10 12 12
